How utilities are getting more out of the Esri Utility Network

Editor’s note: Originally published by SSP Innovations under SSP Productivity. Updated by the 3-GIS Team with the current product name, 3-GIS | Productivity, and other revisions.

The way utilities manage data today reflects more than a century of innovation shaped by the pursuit of customer service and safety. From handwritten notes on paper maps to advanced tools that calculate restoration times during outages, the methods have changed but the goals remain the same.

With digital transformation, utilities can meet those goals with greater accuracy and efficiency by streamlining workflows and business processes. Gartner defines digital transformation broadly, covering everything from IT modernization to digital optimization.¹ At the center of this shift are GIS platforms like Esri and solutions like those offered by 3-GIS, which provide the foundation for many utilities’ transformation strategies.

The Open Group Architectural Framework (TOGAF) outlines four architecture domains: business, application, data, and technical.² These domains help define where transformation begins and where it should lead. 3-GIS | Productivity, for example, extends Esri’s Utility Network and plays a role in each of these domains, making it a true catalyst for organizational change.³

Architectural Domain	Description
	How work gets done across the organization Clarifies core business processes and governance Documents current workflows and pain points Sets expectations for how work flows in the Utility Network Aligns legacy practices with modern Utility Network goals
	How tools support day-to-day workflows Outlines required tools, workflows, and approvals Defines how edits move from users to DEFAULT Supports review and approval through configurable workflows Enables visual editing of associations in familiar workflows
	How network data is structured and used Defines the Utility Network data model in practice Maps asset groups and asset types to editing tools Uses network categories to support tracing and phase changes Ensures data supports analysis and daily operations
	What runs underneath it all Relies on Esri and ArcGIS Enterprise as the foundation Supports Utility Network services and performance needs Integrates 3-GIS | Productivity into the system of record Enables tracing, analysis, and large-scale network edits

Where architecture meets the Utility Network

3-GIS | Productivity runs on the Esri ArcGIS platform and becomes part of the system of record. Productivity leverages the Utility Network data model to run analyses such as tracing, which allows users to identify open switches or valves in a network or to perform a mass phase change.

The legacy geometric network gave way to the digital transformation of the Utility Network. By using a tool that extends Esri’s core capabilities and stays true to its mission of interconnected models and digital representations of real-world assets, organizations gain agility, flexibility, and alignment with evolving technologies that maintain and power our energy infrastructure. An example of how transformation has evolved can be seen in the historic drawing below from Hawkins (1914).

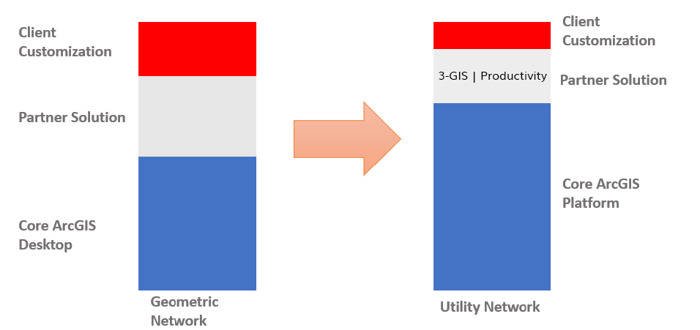

Figure 1: Geometric Network to Utility Network Digital Transformation with 3-GIS | Productivity

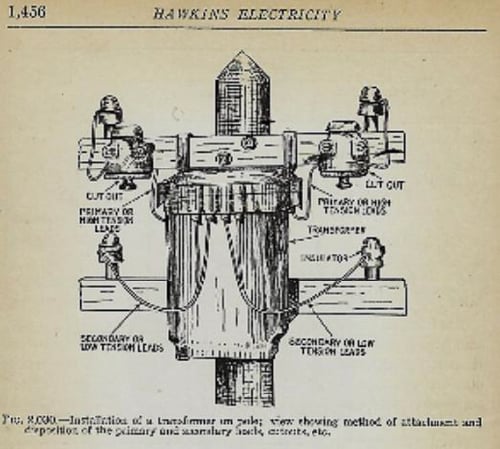

Figure 2: Transformer and Attachment from Hawkins Electricity (1914)

This hand-drawn illustration shows the installation of a transformer on a pole, with the method of attachment and the routing of primary and secondary leads. With Esri’s Utility Network and 3-GIS | Productivity, a similar visual representation is possible using the visual association tool.

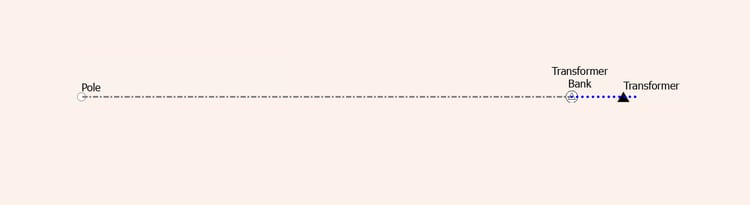

Figure 3: 3-GIS | Productivity Visual Associations

Several technical applications from the legacy representation can now be transformed into a modern system. This example shows how structural attachment associations are visualized in 3-GIS | Productivity. Over the years the target has remained constant, but the medium we use to reach it has advanced.

Looking to strengthen your Utility Network setup? Contact us here.
